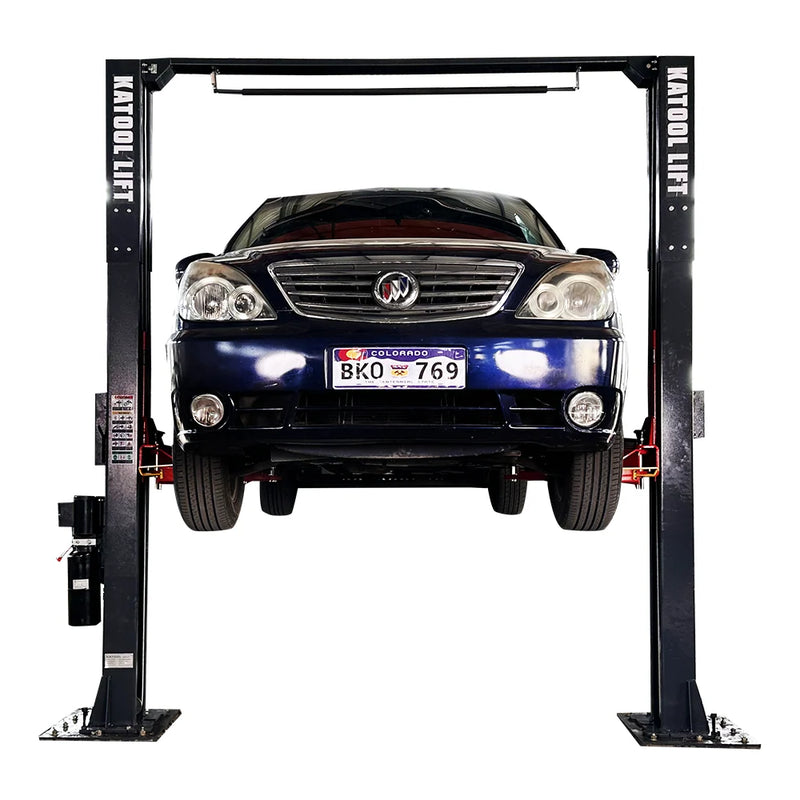

Katool KT AM120SD 12000 lb Clear Floor Commercial Two Post Auto Lift 4HP

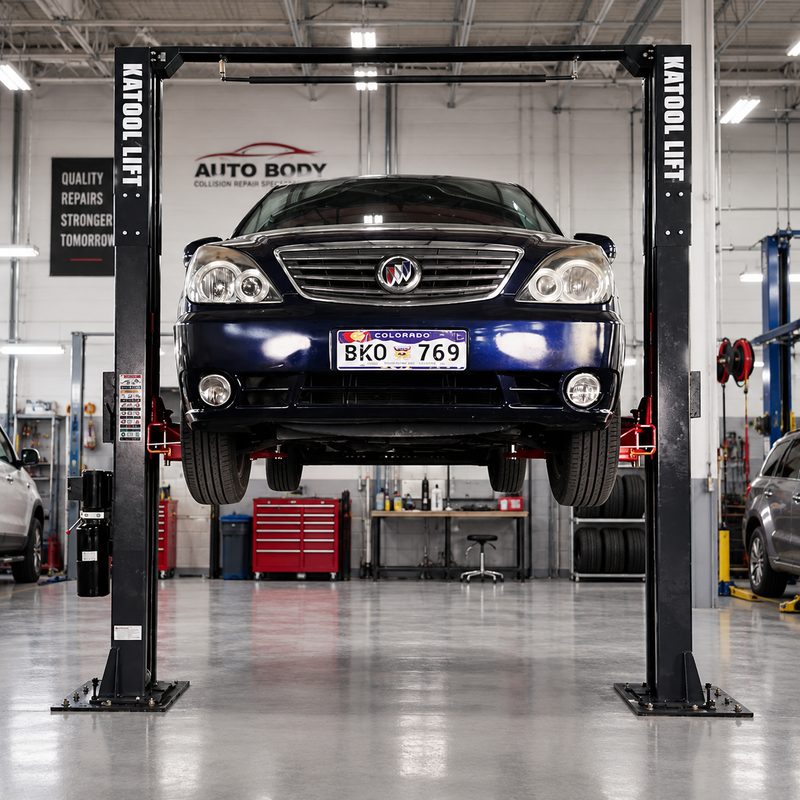

The Katool KT-AM120SD is a professional-grade CE-certified clear floor two-post vehicle lift engineered for high-volume automotive repair shops, performance garages, and serious home enthusiasts who need serious lifting power and unrestricted undercarriage access. With a 12,000 lb lifting capacity tested to 115% dynamic and 150% static load standards, a powerful 4.0 HP direct-drive motor on 220V single-phase power, and an asymmetric arm configuration with single-point lock release, the KT-AM120SD elevates everything from compact cars to full-size trucks to a comfortable working height — giving technicians complete 360-degree access to every undercarriage component from a standing position. The clear floor design eliminates all floor obstructions beneath the vehicle, maximizing both workspace efficiency and installation flexibility in shops of any size.

Key Features

• 12,000 lb CE-certified clear floor two-post design — tested to 115% dynamic and 150% static load standards; no floor plate obstruction means full, unrestricted access to the entire underside of the vehicle during every service and repair

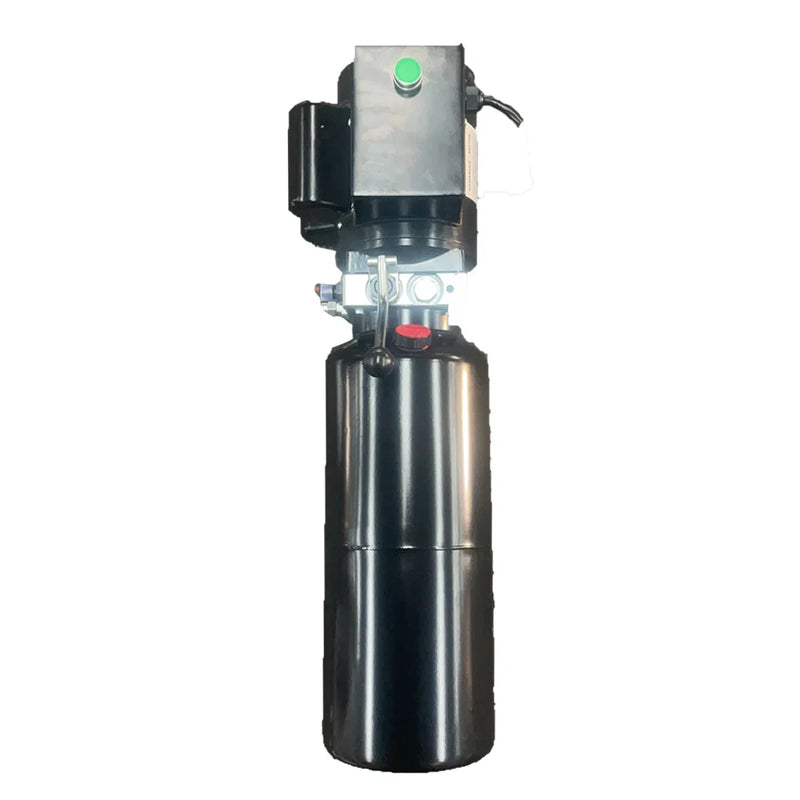

• 4.0 HP direct-drive motor on 220V single-phase power — powerful, reliable direct-drive system delivers consistent lifting performance with minimal maintenance requirements and reduced strain on moving parts for long-term durability

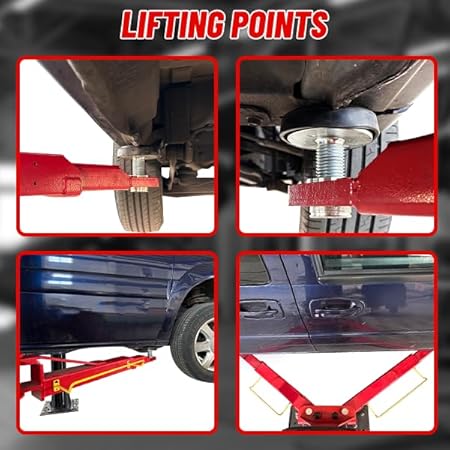

• Asymmetric arm configuration with improved door clearance — specialized arm design positions vehicles slightly toward the rear, providing superior door clearance for comfortable entry and exit access during service without compromising stability

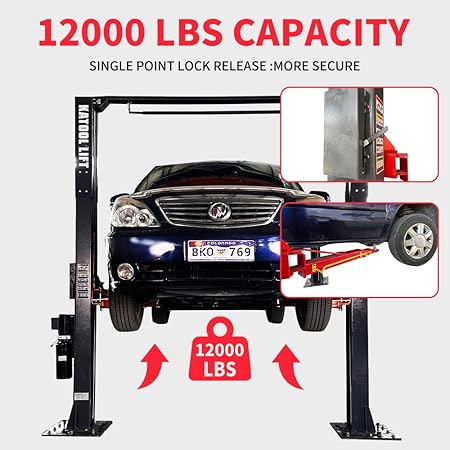

• Single-point lock release system — complete lift control from one convenient location saves time in high-volume shop environments and reduces operational complexity compared to dual-point release configurations
• Overhead safety shutoff bar — automatic over-lift protection engages when the vehicle reaches maximum safe height, preventing accidental over-extension and protecting both the vehicle and the operator

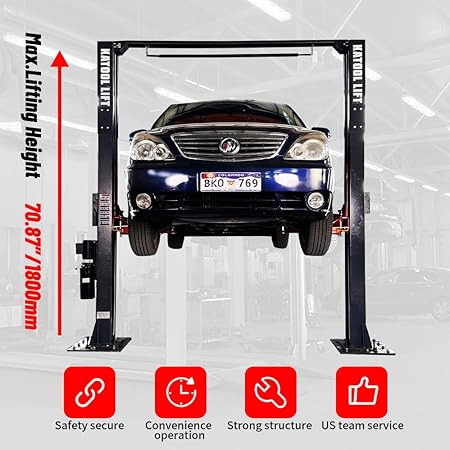

• 70.87 inch maximum lifting height in approximately 50 seconds — fast, efficient lift cycle gets vehicles to working height quickly to maximize shop throughput during busy service days
• 4.25 inch minimum lifting height — accommodates low-profile sports cars, performance vehicles, and lowered vehicles that cannot fit on higher-minimum lifts
• Rubber pad door-opening protection on both posts — built-in rubber guards on both columns prevent accidental door damage during vehicle loading and positioning

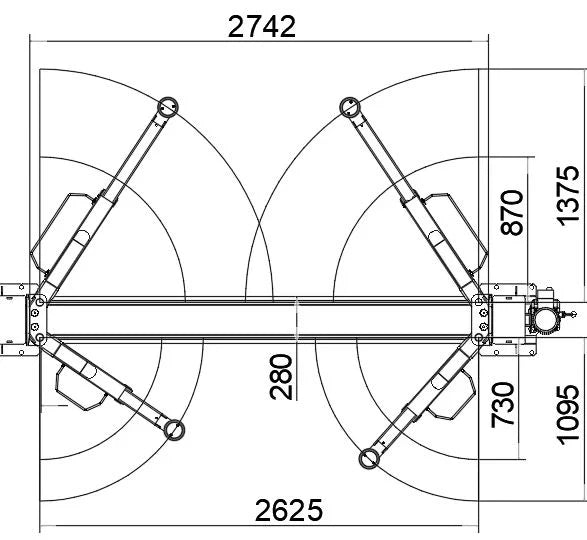

• 94-inch drive-thru clearance with 110-inch inside column measurement — generous bay dimensions provide ample room for positioning a wide range of vehicle lengths and widths
• High-strength steel columns, arms, and base construction — reinforced heavy-duty steel construction engineered for daily commercial use with long-term structural stability and powder coat finish for corrosion resistance
• Operates on 220V/60Hz/1PH standard with optional 110V configuration available for shops with different electrical setups
• Minimum concrete requirement: 5.9 inches thick at 3,000 PSI for safe, stable installation
