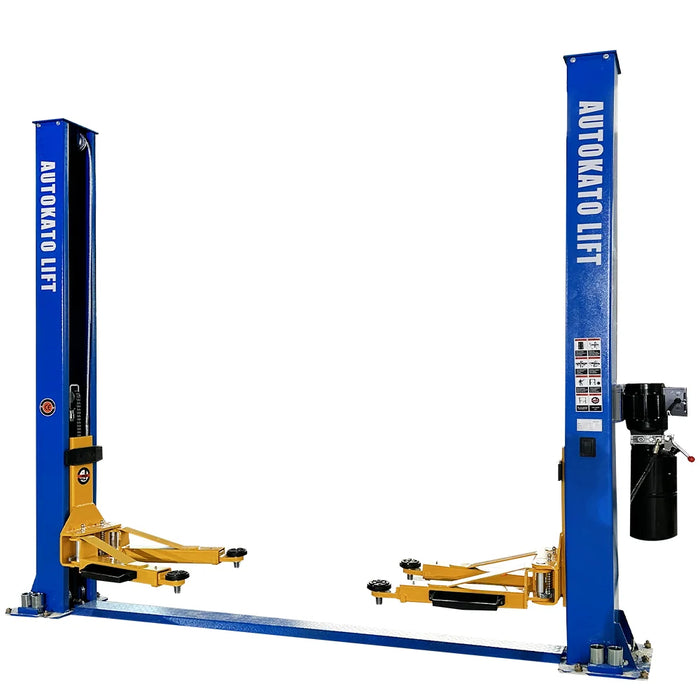

Katool KT H105 10000 lb Base Plate Symmetric Two Post Car Lift 220V

The Katool KT-H105 is a CE-certified symmetric base-plate two-post vehicle lift engineered for professional automotive shops and home garages that need reliable 10,000 lb lifting performance in a low-ceiling-compatible, installation-friendly design. Unlike overhead-beam lifts that require unobstructed header clearance, the KT-H105 uses a base-plate configuration where the hydraulic crossover runs along the floor — eliminating the overhead beam entirely so the lift fits into bays that standard overhead lifts simply cannot use. With dual hydraulic chain-drive cylinders tested to 115% dynamic and 150% static load standards, a 3.9 inch minimum arm height for low-profile vehicles, 98.4 inch drive-thru clearance, and a manual safety release accessible from both sides, the KT-H105 delivers proven, versatile commercial-grade lifting capability for the full range of passenger cars, SUVs, vans, and light trucks.

Key Features

• 10,000 lb CE-certified base-plate two-post design — tested to 115% dynamic and 150% static load standards; no overhead crossbar means no beam to clear during installation, making this lift compatible with low-ceiling garages and bays where overhead-style lifts cannot be used

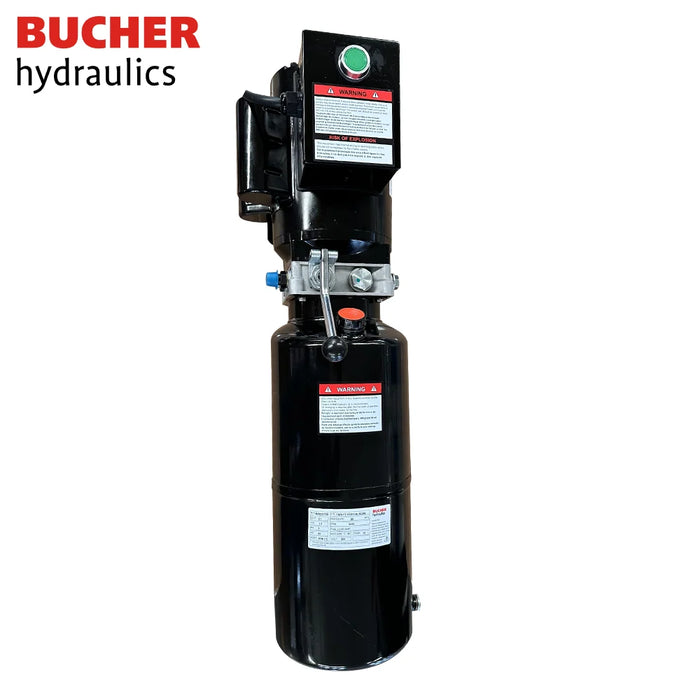

• Dual hydraulic chain-drive cylinders with 3/8-inch cables — independent cylinders on each column with heavy-gauge cables deliver smooth, synchronized, and consistently reliable lifting performance through years of daily heavy-duty use
• Symmetric arm configuration with front and rear two-stage arms — front arm reach 29.5 to 46 inches and rear arm reach 35.4 to 58.2 inches accommodate most passenger vehicles, SUVs, and light trucks without positioning constraints
• 3.9 inch minimum lifting height — low-profile arms accommodate sports cars, lowered vehicles, and modern performance vehicles that cannot be serviced on higher-minimum lifts
• Manual safety release accessible from both sides — bilateral release lever allows safe, convenient lowering control from either column for flexible, efficient daily operation

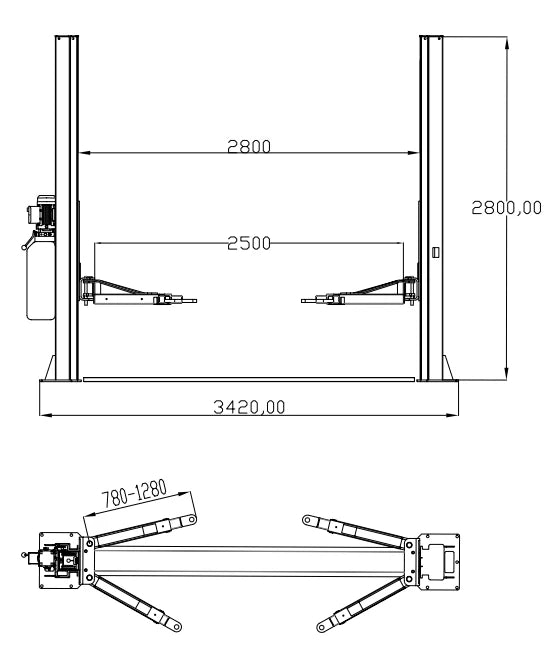

• 98.4 inch drive-thru clearance with 110.2 inch inside column width — wide, unobstructed bay entrance accommodates sedans, SUVs, trucks, and vans without restricted access or repositioning

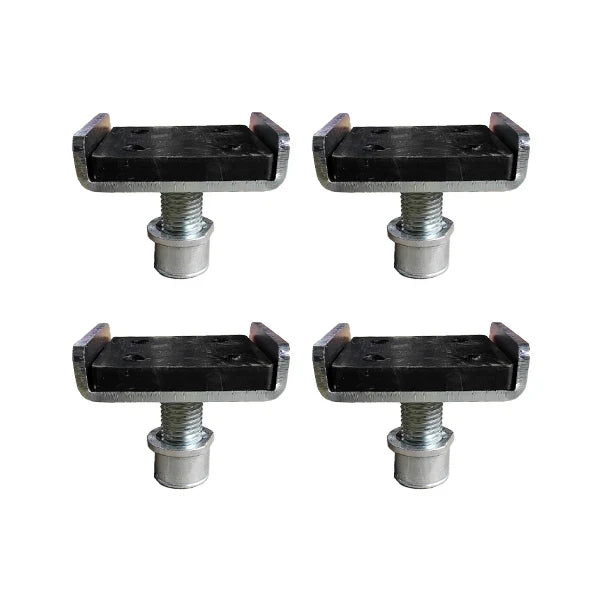

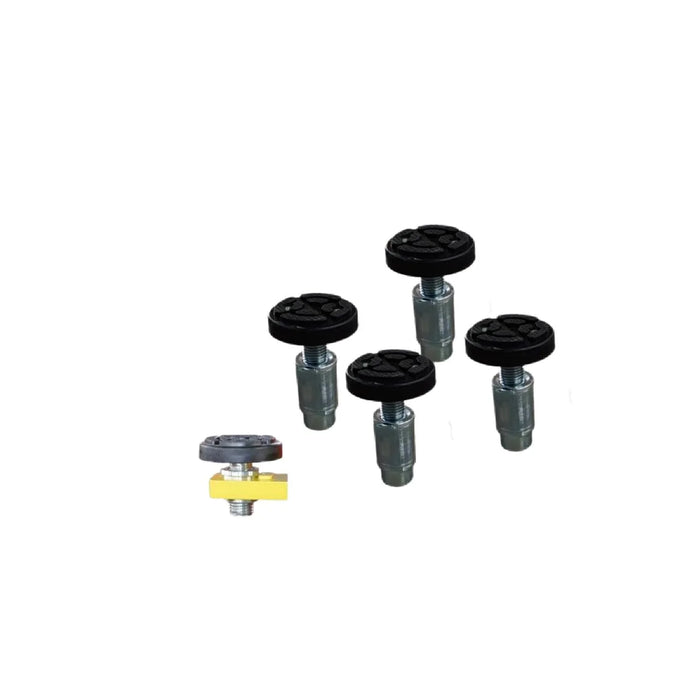

• Screw-on pads and plus 100mm extension support adaptor sets included — built-in pad versatility accommodates trucks and vehicles with higher pinch welds or non-standard frame heights right out of the crate
• Rubber pad door-opening protection on both posts — column-mounted rubber guards prevent accidental door panel and paint damage during vehicle loading and positioning at any height
• Operates on 220V/60Hz/1PH — minimum concrete requirement of 5.9 inches thick at 3,000 PSI for safe, stable base-plate installation
