Katool KT H120D 12000 lb Symmetric Two Post Vehicle Lift 4HP Single Lock

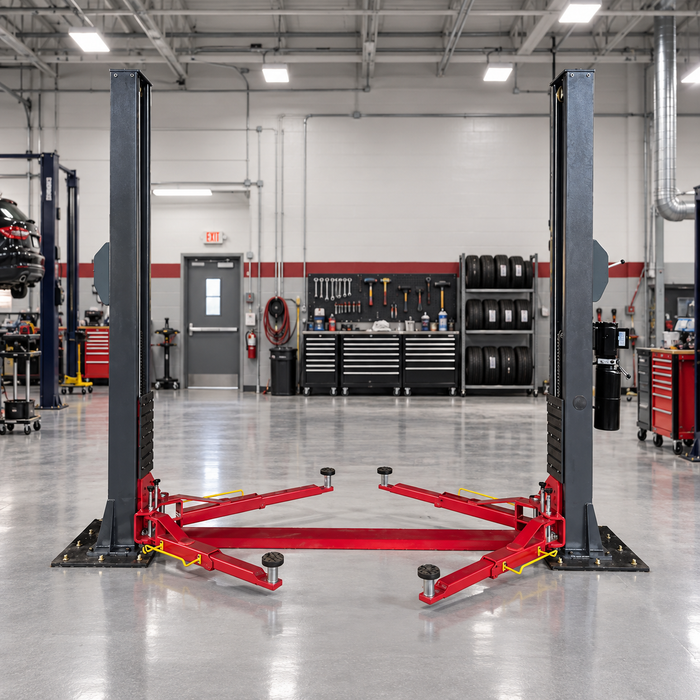

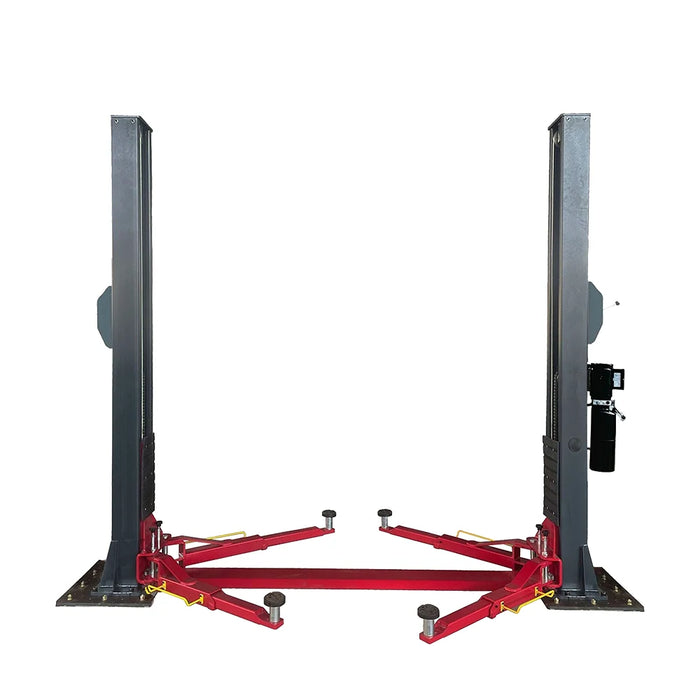

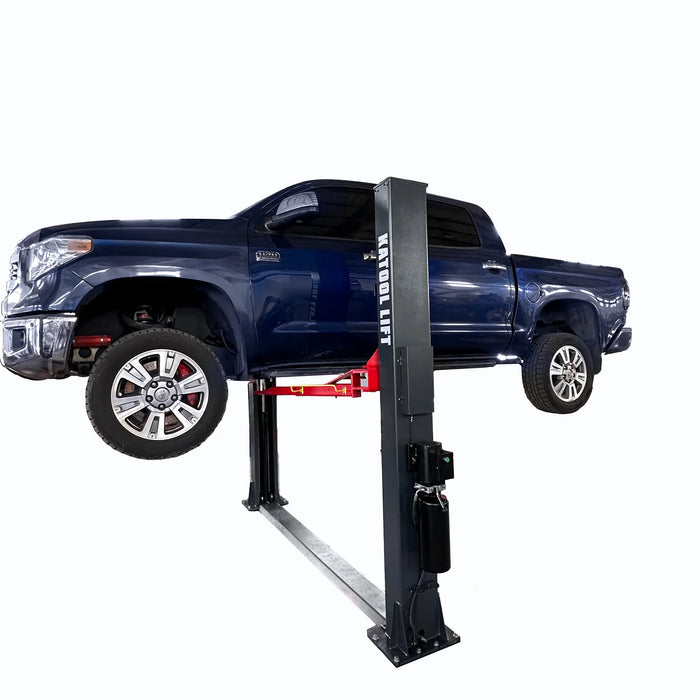

The Katool KT-H120D is a heavy-duty professional-grade symmetric two-post vehicle lift engineered for automotive repair shops, fleet service centers, and serious home garages that regularly handle trucks, SUVs, vans, and light-duty commercial vehicles. With a verified 12,000 lb lifting capacity — not approximated for marketing, but structurally rated at full load — the KT-H120D handles crew cabs, lifted trucks, and most light commercial vehicles with confidence and stability. Powered by a 4.0 HP motor with dual hydraulic chain-drive cylinders, it delivers smooth synchronized lifting to a generous 74.8 inch maximum height with single-point lock release for fast, efficient operation from one convenient location. Built from Q235 and Q245 structural steel with a base plate configuration and CE-certified safety standards, this lift is designed for consistent daily performance and long-term structural reliability.

Key Features

• Verified 12,000 lb lifting capacity at full structural rating — built to handle cars, trucks, vans, SUVs, and light commercial vehicles; the 12,000 lb rating is verified at full capacity, not approximated for marketing claims

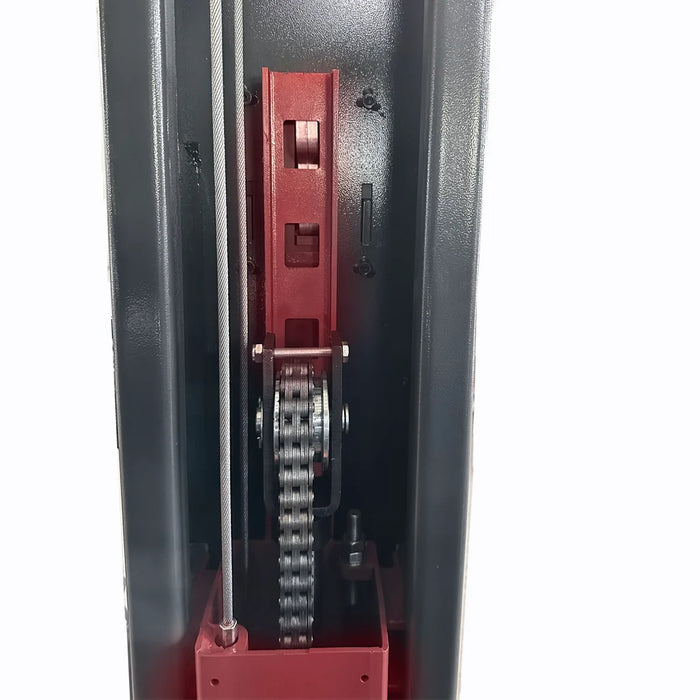

• 4.0 HP motor with dual hydraulic chain-drive cylinders — heavy-gauge sealed cylinders deliver smooth, synchronized lifting performance with consistent cycle times and long-term resistance to the wear that fails cheaper hydraulic systems

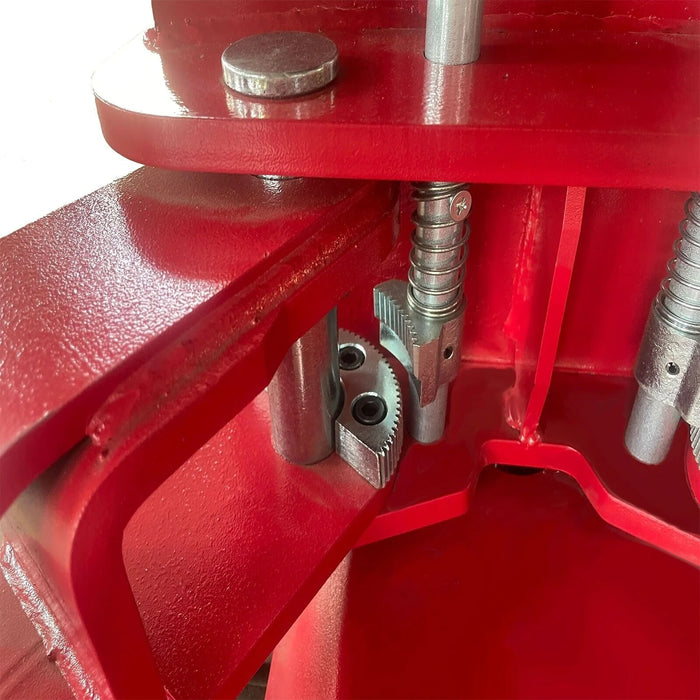

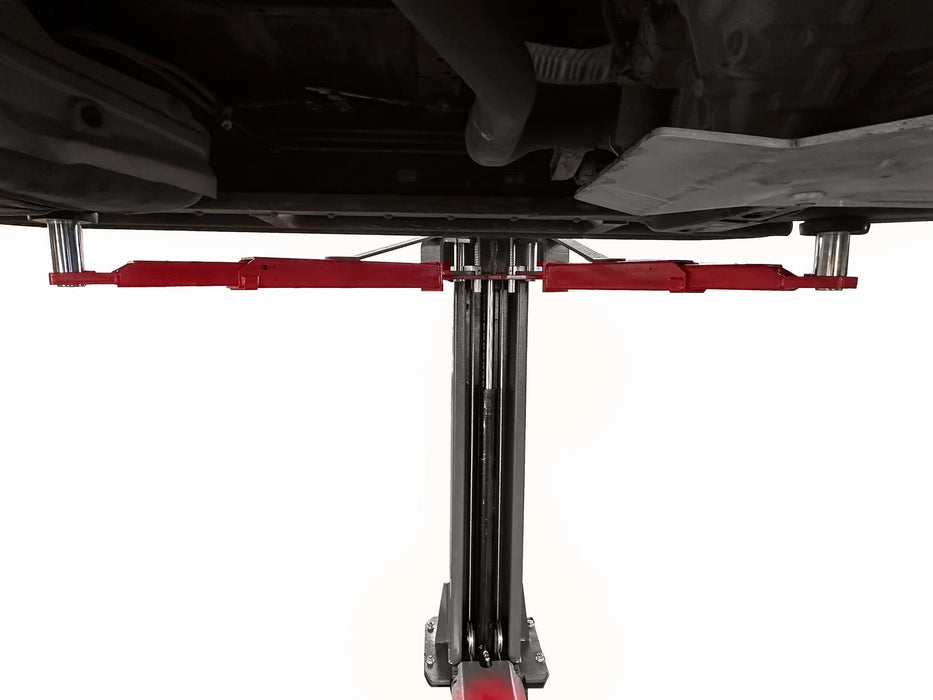

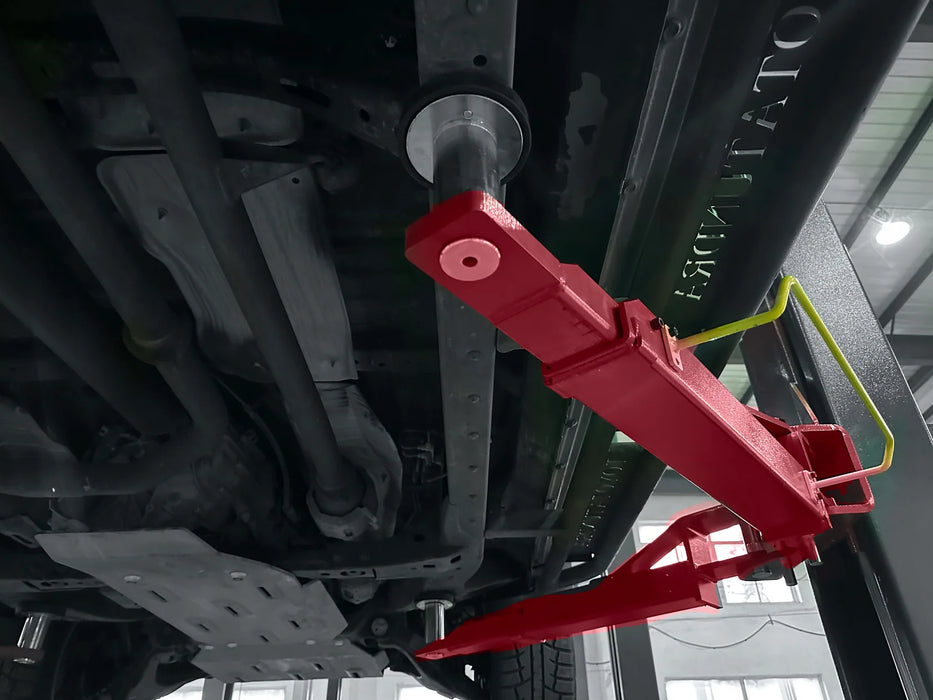

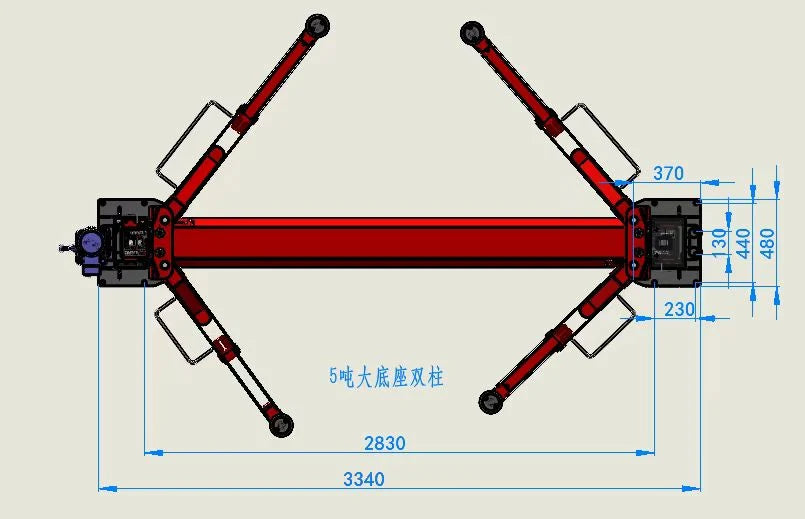

• Symmetric arm design with base plate configuration — balanced arm layout ensures even weight distribution across the lift structure for stable, reliable vehicle support at any height position during service

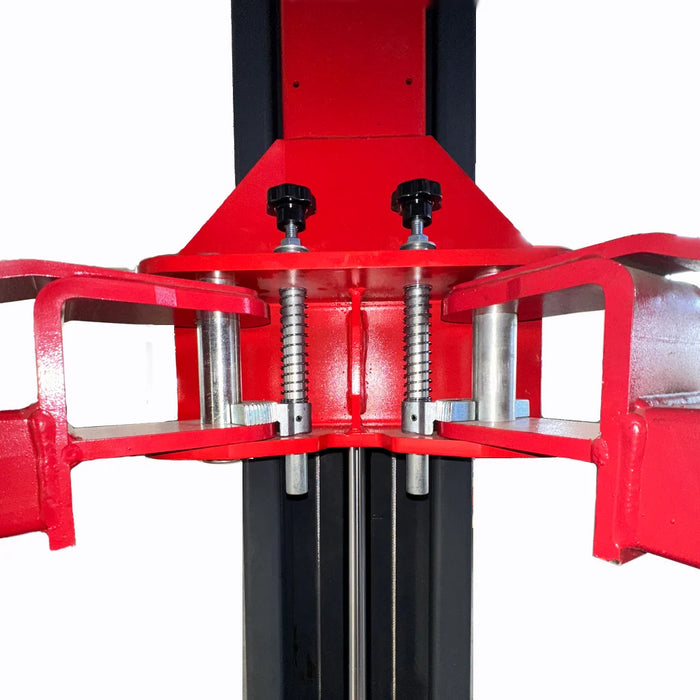

• Single-point lock release system — mechanical safety locks engage audibly at multiple height positions during ascent; single-side release lever lowers both columns in tandem from one convenient location, saving time across a full day of service cycles
• 74.8 inch maximum lifting height with 4.25 inch minimum — generous maximum height provides full undercarriage access for exhaust, suspension, brake, and transmission work; low 4.25 inch minimum accommodates sports cars and lowered vehicles
• Low ceiling compatible design at 110.94 inches overall height — engineered to fit service bays with limited ceiling clearance while still delivering maximum lift height and working room
• Rubber pad door-opening protection on both posts — built-in rubber guards prevent accidental door panel damage during vehicle loading and positioning at any height

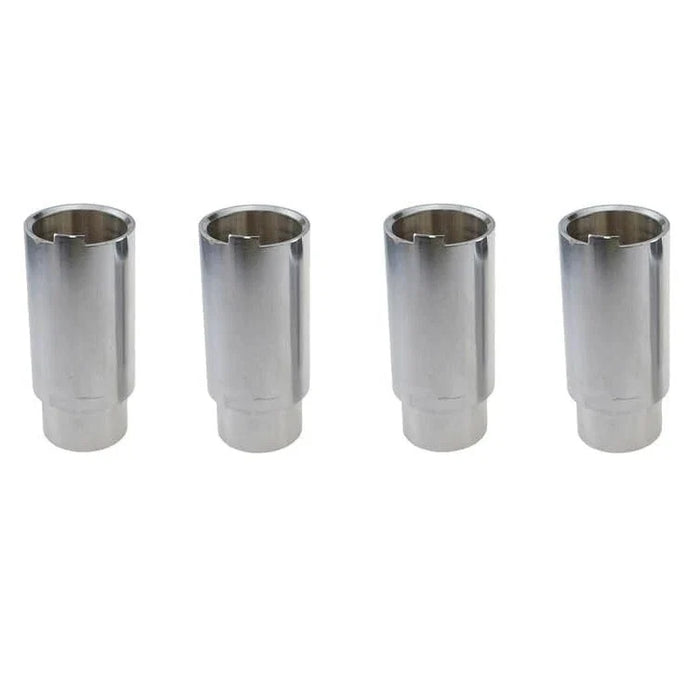

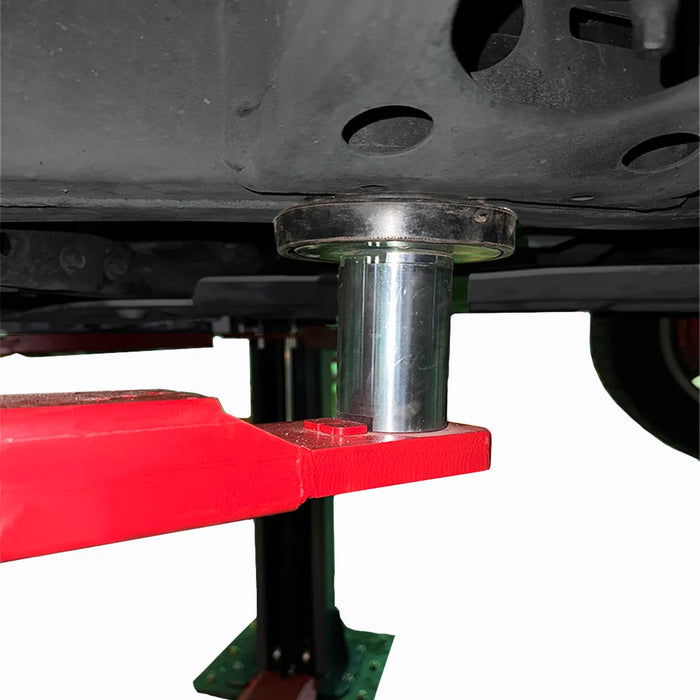

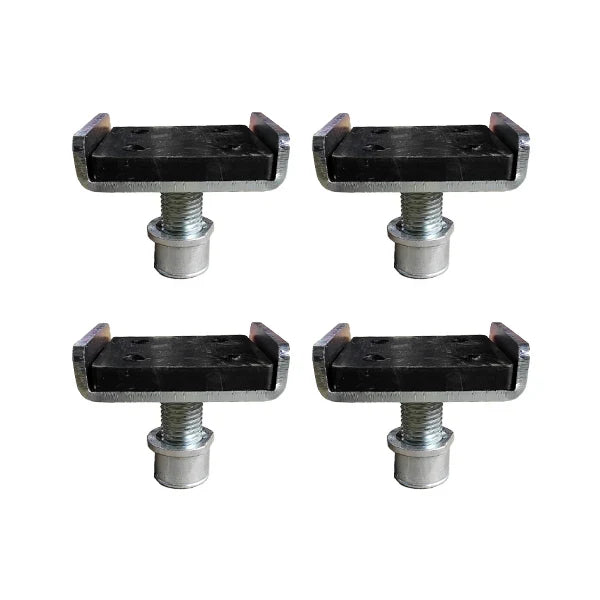

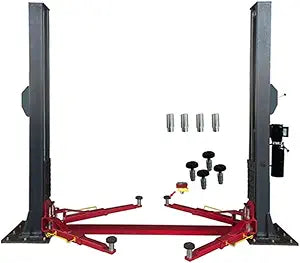

• Screw-on pads and plus 100mm extension support adaptor set included — expands vehicle compatibility to accommodate trucks and vehicles with higher frames or non-standard lift point configurations
• Feet-protection safety guardrails with integrated toolbox — guardrails prevent foot injuries from moving lift arms while keeping essential tools organized and within arm's reach during repairs
• Q235 and Q245 structural steel construction with powder coat finish — high-strength structural steel resists daily wear, corrosion, and long-term structural fatigue in demanding commercial shop environments
• Operates on 220V/60Hz/1PH — minimum concrete requirement of 5.9 inches thick at 3,000 PSI for safe and stable installation
