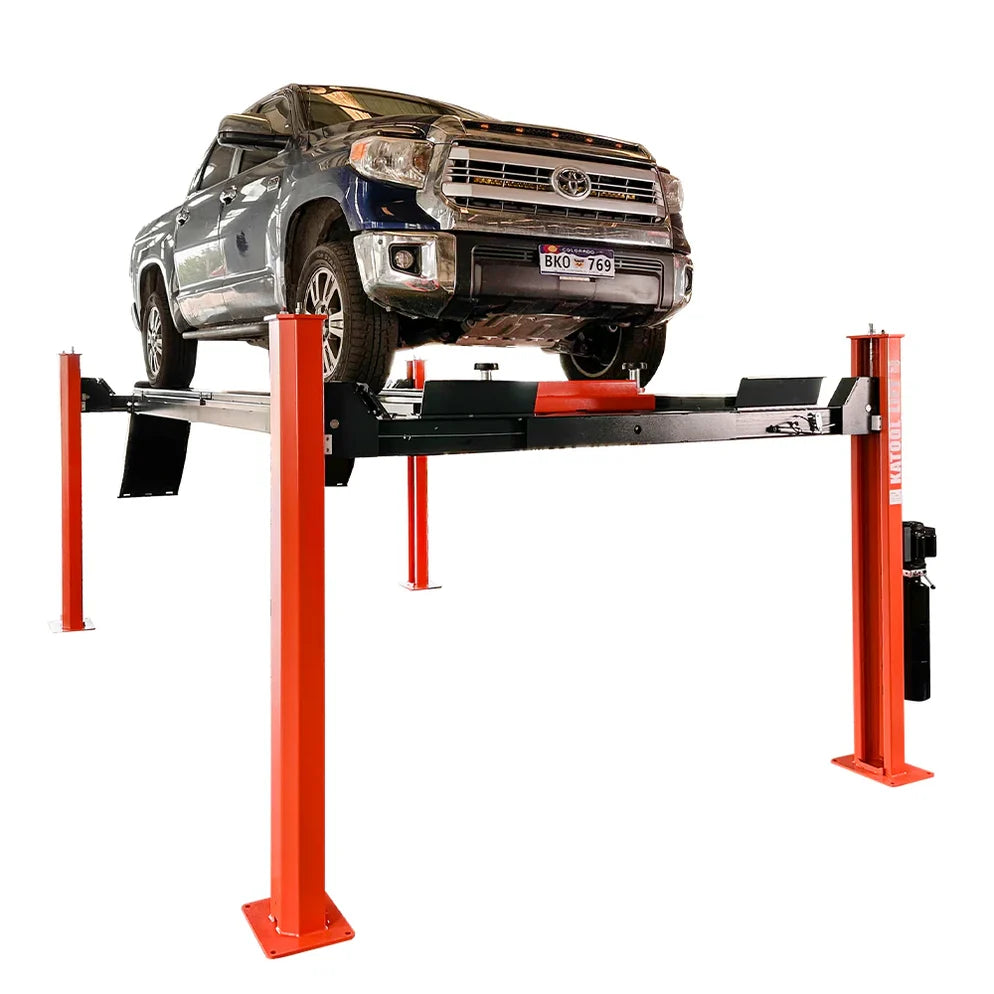

Katool KT 4H150 15000 lb Four Post Alignment Lift with Rolling Jack

The Katool KT-4H150 is a CE-certified heavy-duty four-post alignment lift engineered for professional automotive shops, commercial service facilities, and serious home garages that require maximum lifting capacity, alignment capability, and daily reliability in one complete package. With a 15,000 lb lifting capacity — tested to 115% dynamic and 150% static load standards — the KT-4H150 handles the full range of passenger vehicles, SUVs, light trucks, heavy-duty trucks, and commercial vans with confidence. The included 6,000 lb rolling jack enables wheel-free service for alignment, brake, and suspension work directly on the lift, while built-in rear slip plates and optional front turntables deliver a complete four-wheel alignment solution without additional equipment purchases.

Key Features

• 15,000 lb CE-certified lifting capacity — tested to 115% dynamic and 150% static load standards for professional-grade structural confidence

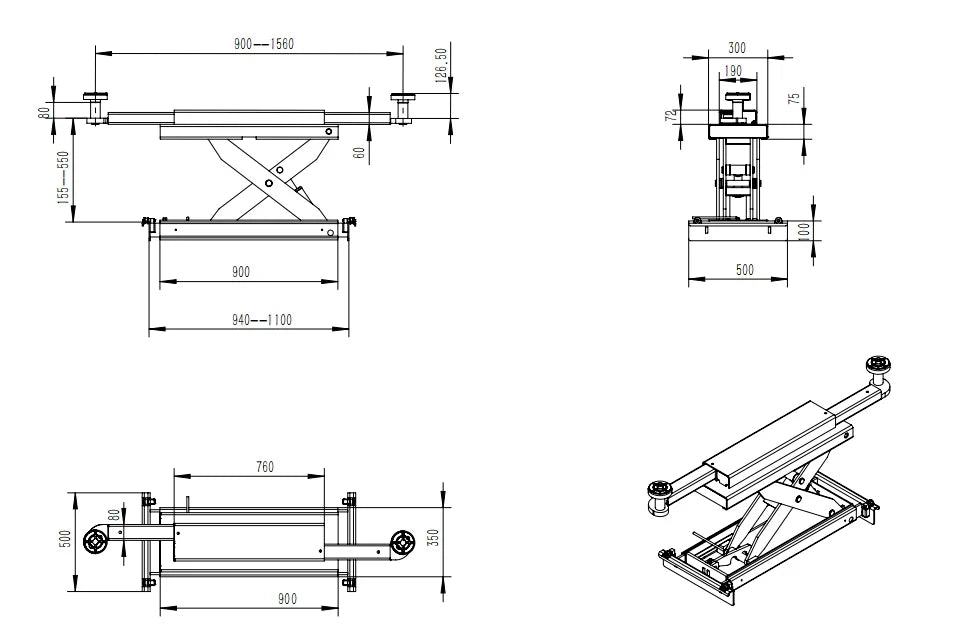

• 6,000 lb rolling bridge jack included — enables wheel and brake service with wheels hanging free directly on the lift, eliminating the need for separate equipment
• Built-in rear roller slip plates for four-wheel alignment — optional front turntables available for full alignment functionality

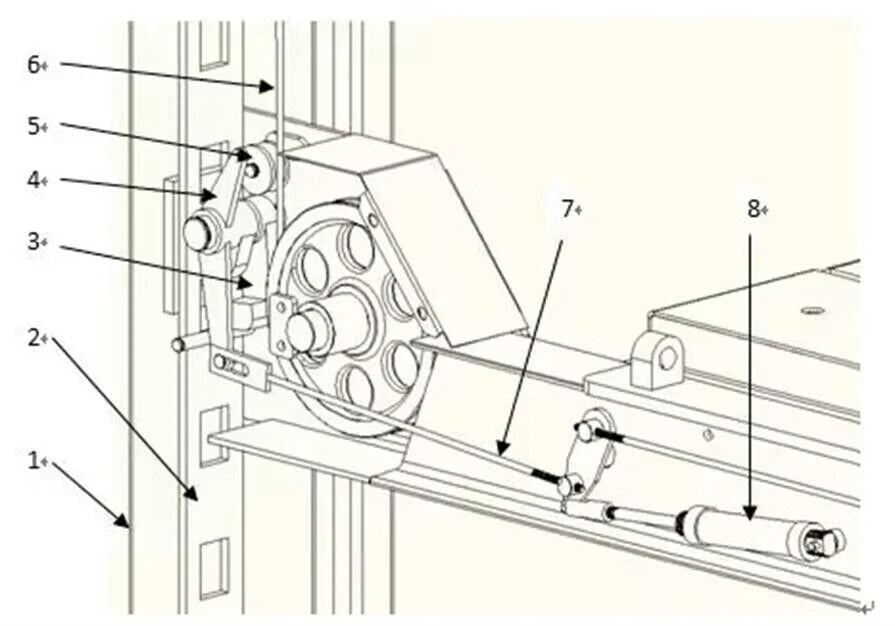

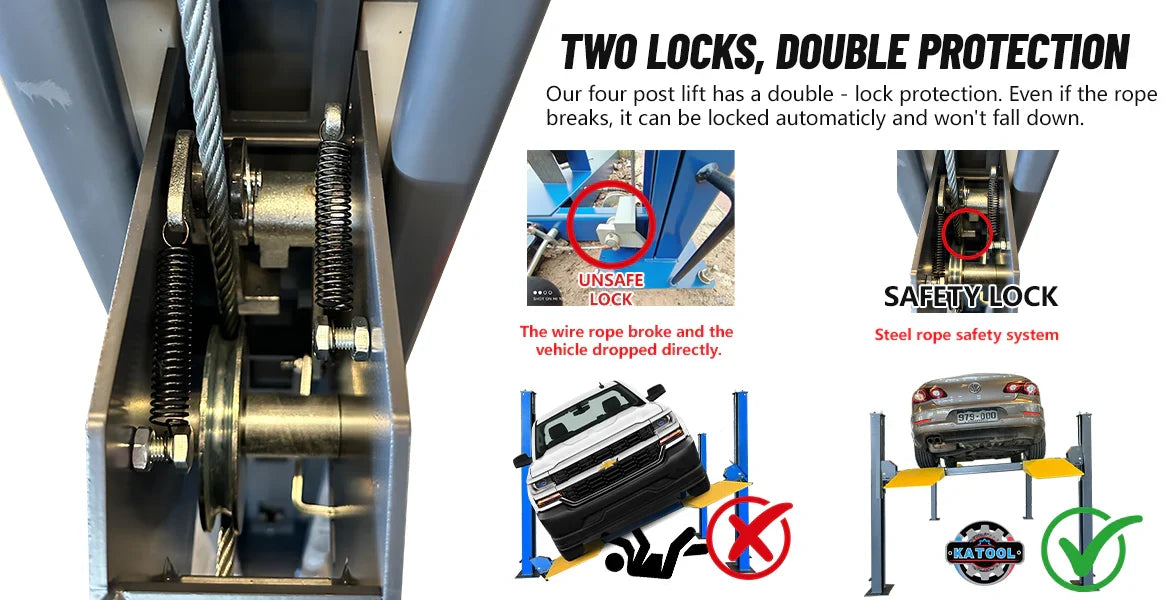

• Spring-loaded safety locks automatically engage at multiple positions as the lift is raised — secondary slack-cable safety lock provides additional protection
• Single-point manual safety lock release simultaneously releases all four independent column locks for fast, effortless lowering
• Multiple adjustable height locking positions every 4.7 inches give technicians precise, customizable working heights across the full rise range

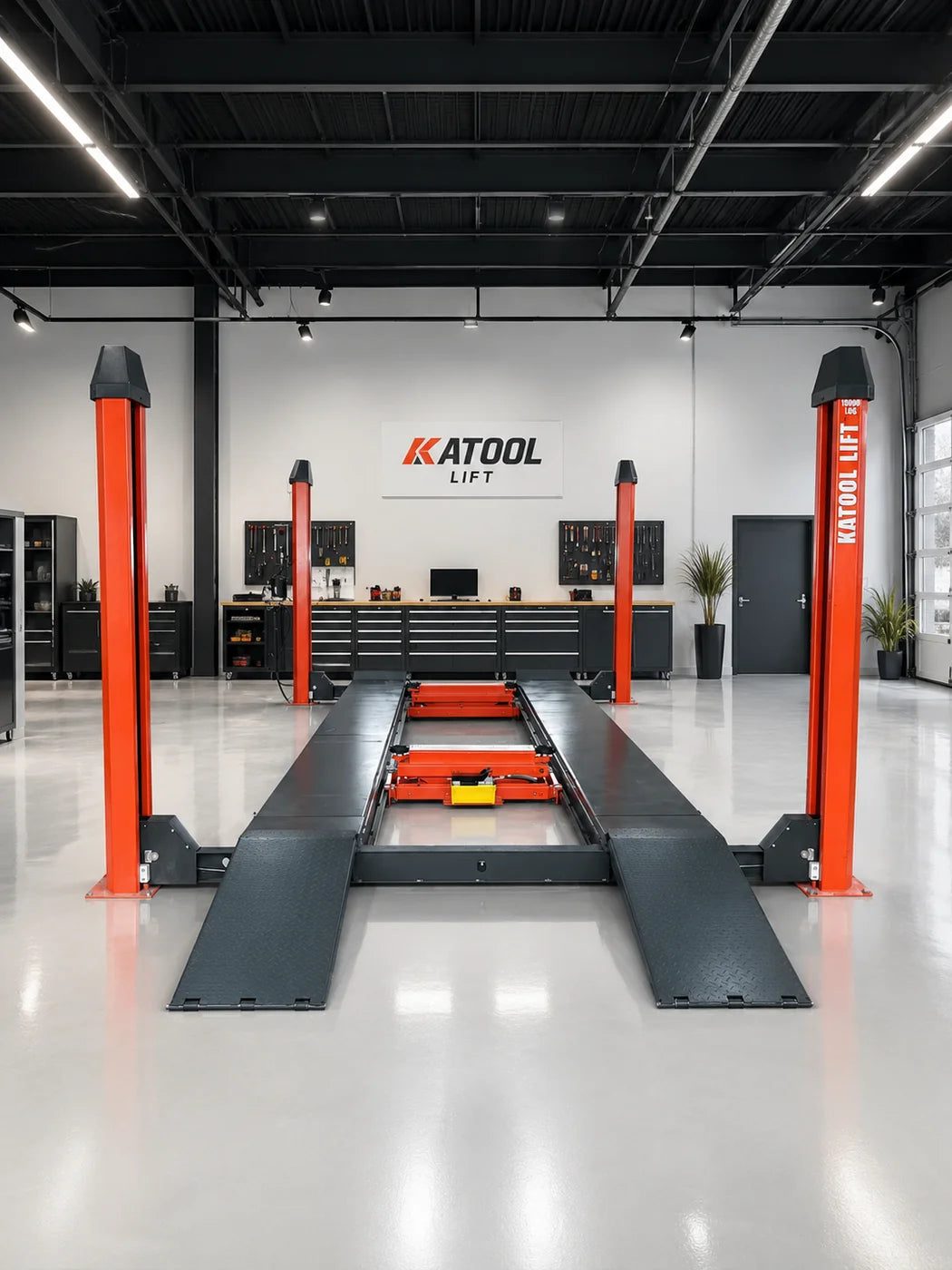

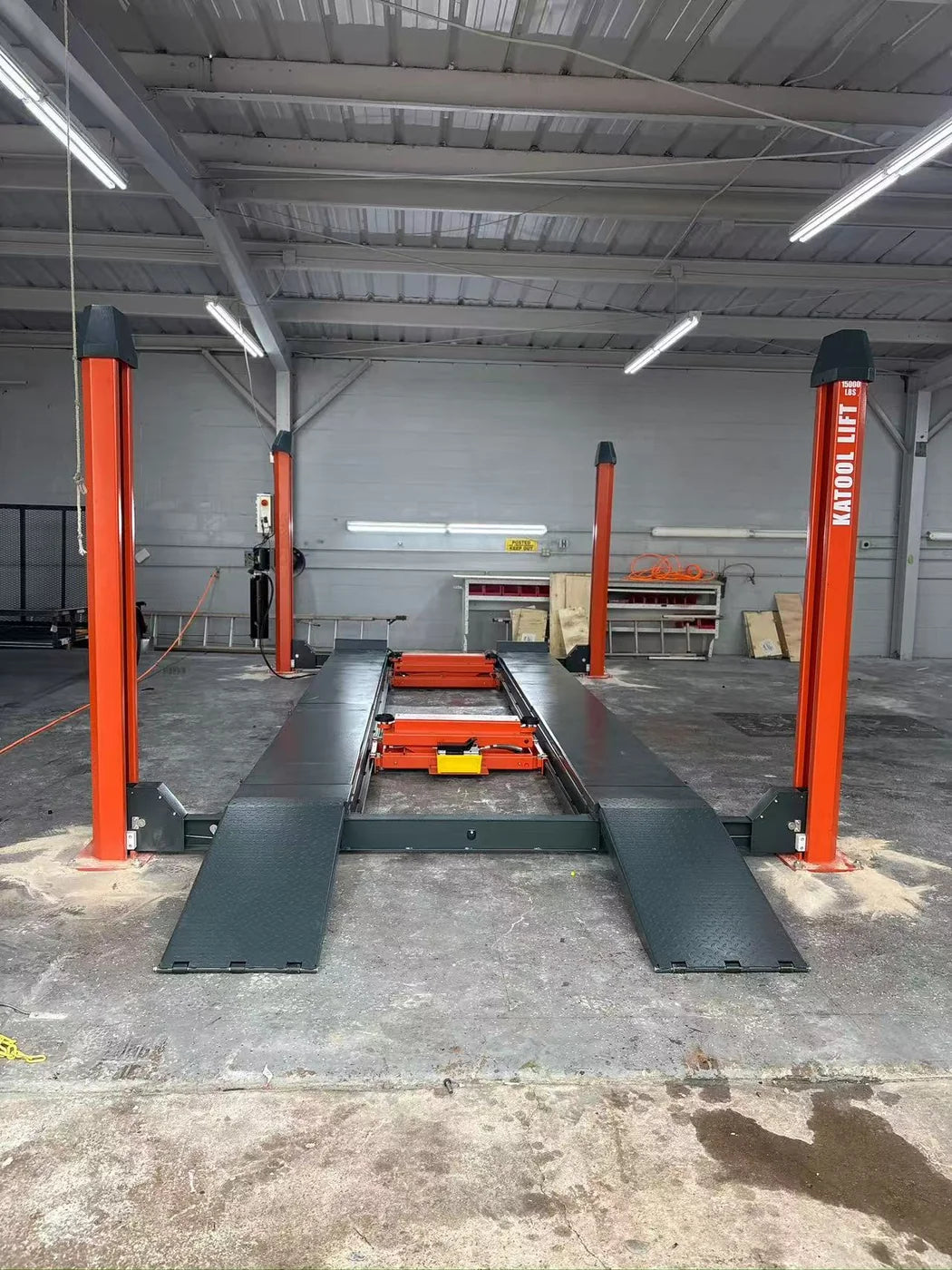

• Non-skid diamond plate runways and non-slip coated approach ramps prevent vehicle movement during lifting and provide reliable traction in all conditions
• Power side column installs on either side, front or rear — flexible configuration for any shop or garage layout
• 3KW hydraulic motor lifts to full 92.52 inch height in 95 seconds — fast, smooth, and consistent performance under continuous daily use

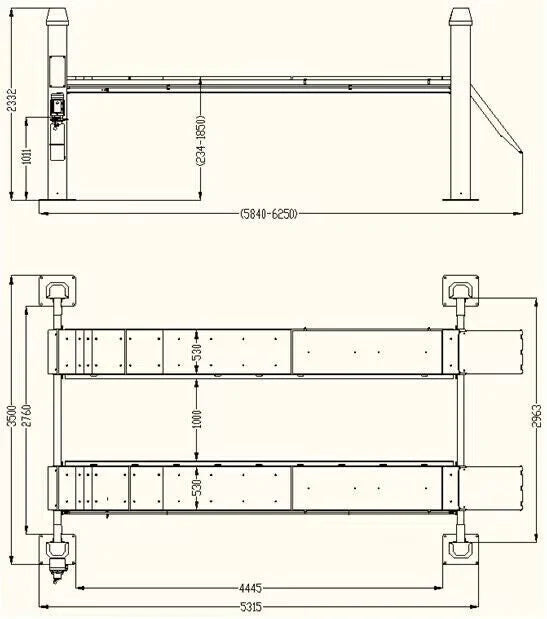

• Open-front design and 117.75 inch drive-through clearance accommodate vehicles of all lengths without repositioning
• Minimum 5.9 inch concrete at 3,000 PSI required — can also be used free-standing without bolting to the floor
• Runs on 220V/60Hz/1PH with optional 110V configuration available

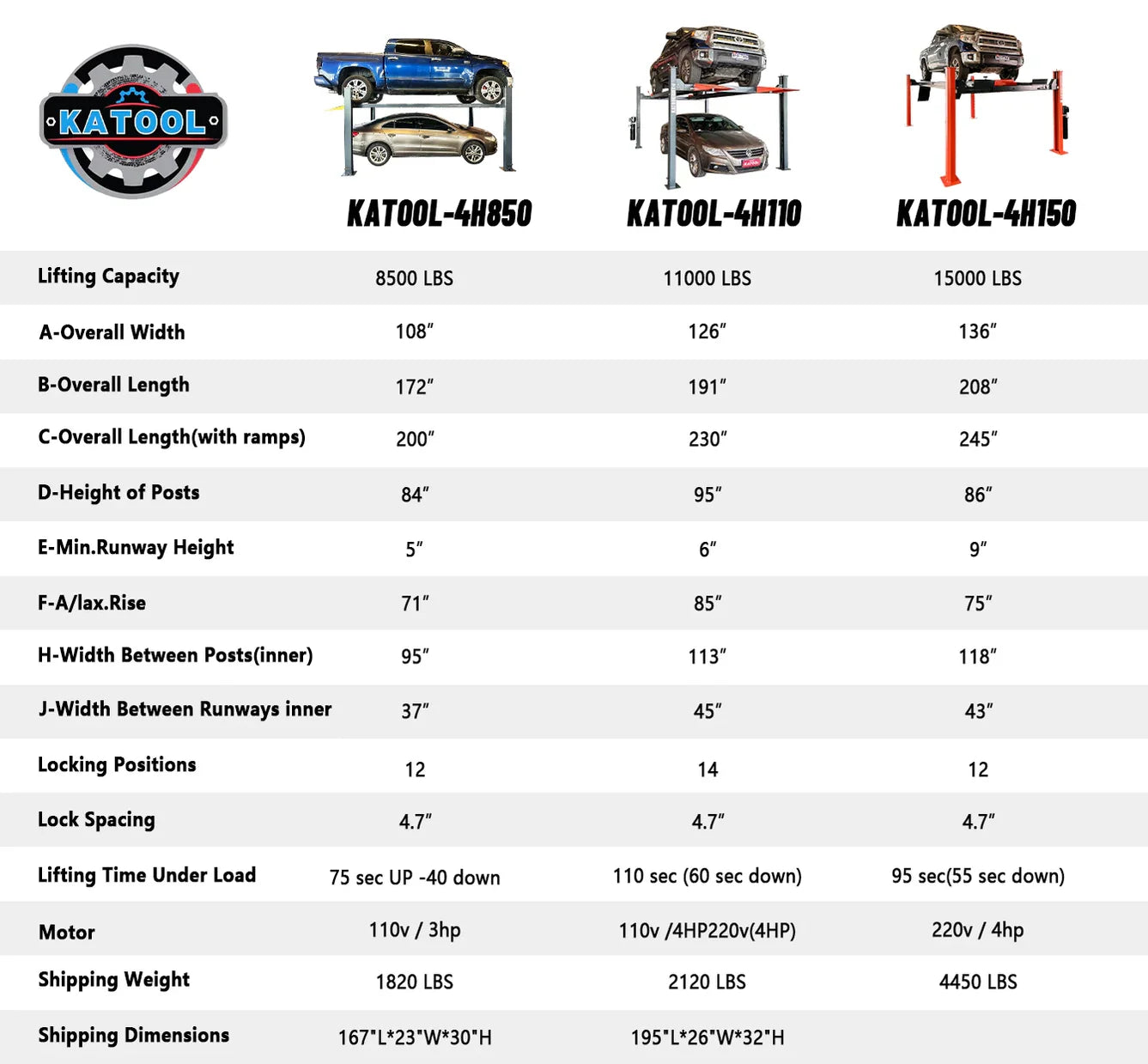

Specifications
