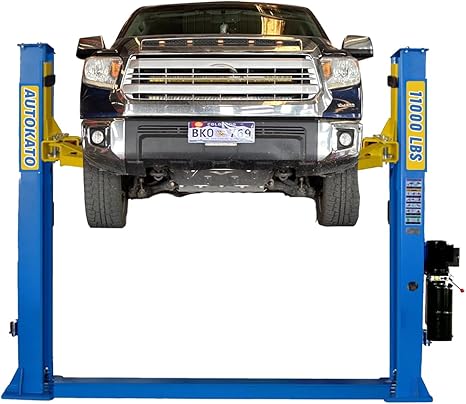

Katool KT H115Z 11000 lb Floor Plate Two Post Car Lift 4HP Low Profile

The Katool KT-H115Z is a CE-certified symmetric floor-plate two-post vehicle lift engineered for professional automotive shops and serious home garages that need reliable 11,000 lb lifting capacity with the versatility to handle everything from low-clearance sports cars to full-size light trucks and SUVs. With low-profile swing arms starting at just 3.9 inches minimum height, dual hydraulic chain-drive cylinders tested to 115% dynamic and 150% static load standards, a 4.0 HP motor that lifts vehicles to 70.8 inches in 45 to 60 seconds, and a base-plate floor design that simplifies installation without an overhead crossbar, the KT-H115Z delivers commercial-grade performance and versatility at an accessible price point for any busy professional or home service environment.

Key Features

• 11,000 lb CE-certified capacity tested to 115% dynamic and 150% static load standards — handles passenger cars, mid-size and full-size SUVs, and light-duty trucks with proven, documented structural confidence across the full rated load

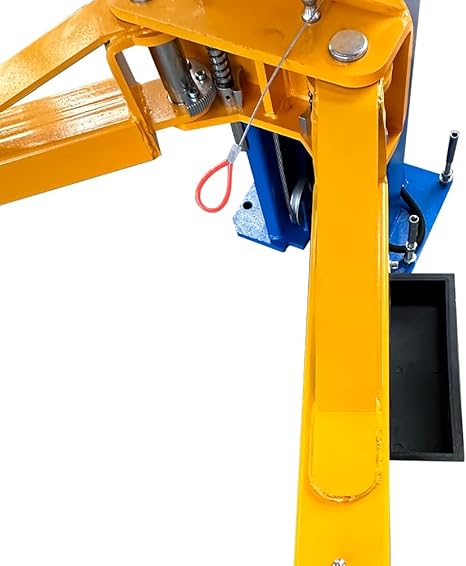

• Low-profile swing arms with 3.9 inch minimum height — accommodates low-clearance sports cars, modified vehicles, and modern performance cars that cannot be lifted on standard higher-minimum lifts; two-stage arms with front reach 29.5 to 46 inches and rear reach 35.4 to 58.2 inches

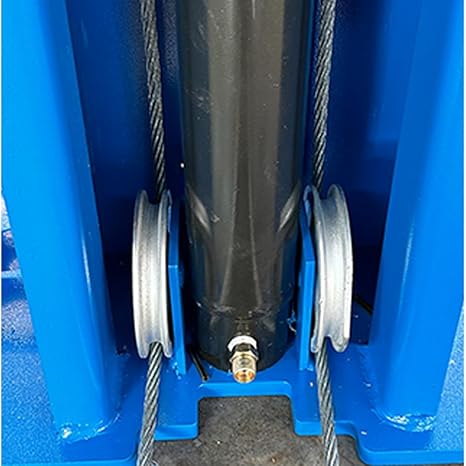

• Dual hydraulic chain-drive cylinders on each column — independent cylinder on both columns delivers smooth, synchronized, and consistently reliable lifting performance under heavy repeated daily use
• 4.0 HP motor lifts to full height in 45 to 60 seconds — fast, efficient lift cycles maximize shop throughput and minimize downtime between service jobs throughout a full working day

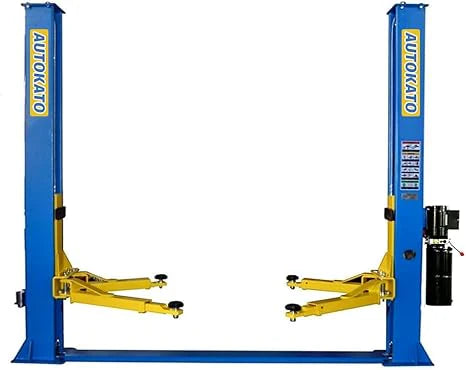

• Floor-plate base design with no overhead crossbar — base plate configuration provides added structural stability, simplifies installation and delivery, and eliminates the overhead beam that restricts clearance in standard overhead-style lifts
• Two-point lock release system accessible from both sides — dual bilateral lock release gives technicians full, safe lowering control from either side of the lift at any height position during service
• 98.4 inch drive-thru clearance — wide, unobstructed bay clearance accommodates sedans, SUVs, light trucks, and most vehicles without repositioning or restricted access

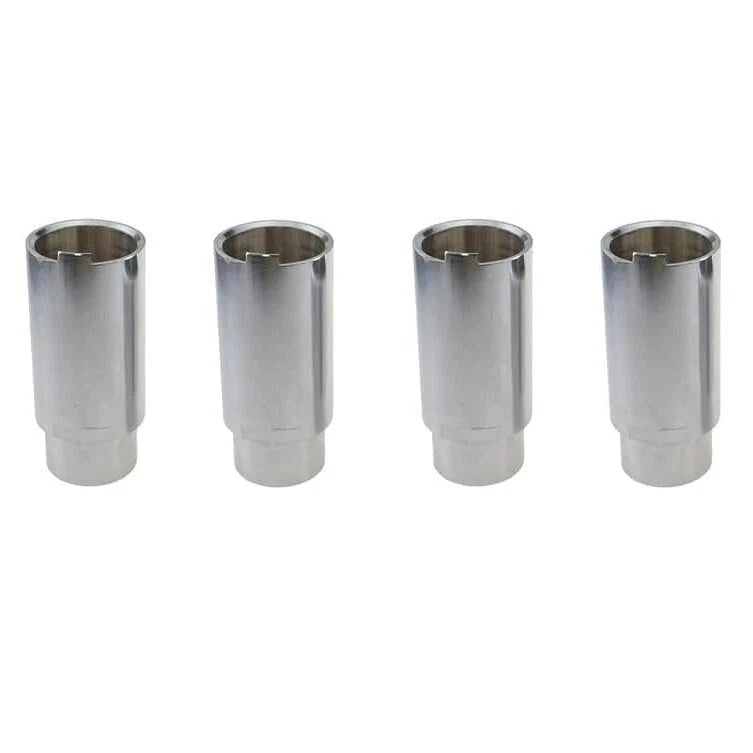

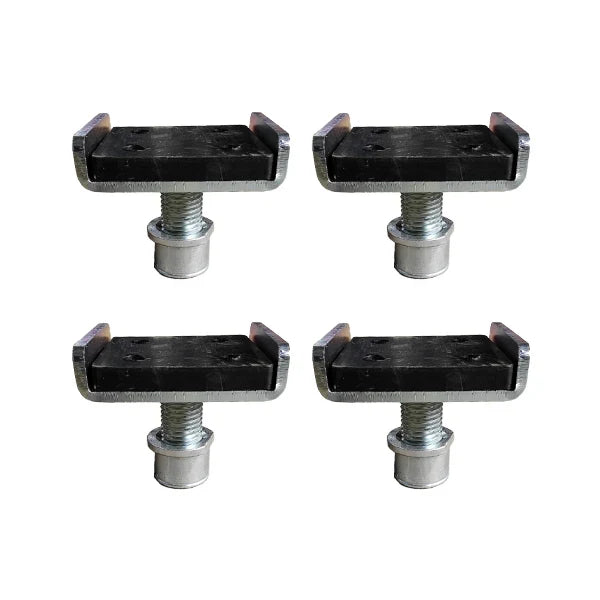

• Drop-in adapters and screw-up pads included — expand vehicle compatibility to accommodate different frame heights, non-standard lift points, and a broader range of vehicle configurations right out of the crate
• Rubber pad door-opening protection on both posts — built-in rubber column guards prevent accidental door panel and paint damage during vehicle loading and service at any height
• Operates on 220V/60Hz/1PH — minimum concrete requirement of 5.9 inches thick at 3,000 PSI for safe and stable floor-plate installation
